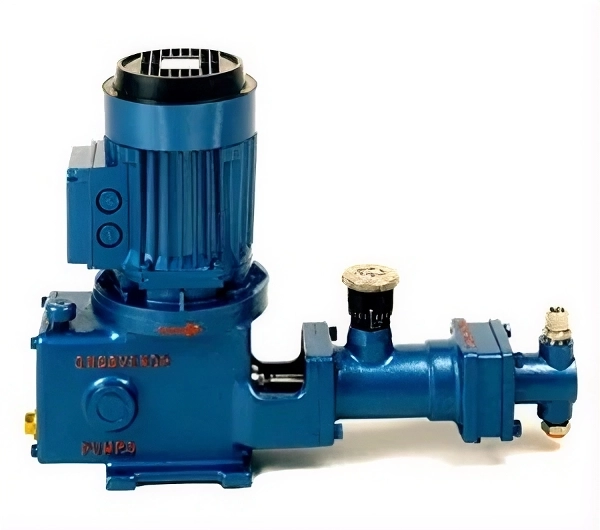

Variflow Dosing Metering Plunger Pumps - GV Series
The Variflow Dosing Metering Plunger Pumps GV series is from 0 - 46 LPH giving a maximum pressure of 100 Bar depending upon the flow rate. These pumps are provided with high efficiency ball valves & high grade of engineering materials for the wetted parts, which enables wide range of aggressive, toxic, hazardous liquid to be handled in the absence of any gland ,which offers zero leakage. The pump head are Manufactured from Stainless Steel Material.
Technical Details
| CAPACITY | MAX - 46 LPH |
| PRESSURE | MAX - 100 BAR |
| MOC |
SS 304 / SS 316 / SS 316 L or any other as required |
| MOTOR POWER | 0.5 HP, RPM : 1450 |
| MOTOR TYPE |
STANDARD / FLAME PROOF / VFD COMPATIBLE / ENERGY EFFICIENT or any other as required |
| POWER SUPPLY |
SINGLE PHASE / THREE PHASE, 50 HZ / 60 HZ, 230 V / 380 V / 415 V or any other as required |
| APPLICATION | DOSING / METERING / INJECTION / MIXING / FEEDING / SAMPLING |
PRODUCT CHART - GV SERIES
| PUMP MODEL | MAX CAPACITY (LPH) | MAX PR. (KG/CM²) | SPEED (SPM) | END CONN. | MOTOR HP |
|---|---|---|---|---|---|
| GV # 8 – 8 | 0 – 5 | 100 | 60 | 1/4" BSP | 0.50 |
| GV # 8 – 16 | 0 – 11 | 100 | 60 | 1/4" BSP | 0.50 |
| GV # 12 – 16 | 0 – 24 | 100 | 60 | 1/4" BSP | 0.50 |
| GV # 16 – 16 | 0 – 46 | 55 | 60 | 1/4" BSP | 0.50 |
*** Our policy is to continually develop and improve our products and we therefore reserve the right to modify products without any notice.***
